We manufacture from your or from our own design:

  • “Differential cylinders”; the classic 2-ways cylinder with rod-side and piston-side
  • “Plunger cylinders”; the classic 1-way cylinder, with external force to bring the piston-rod back
  • “Tandem cylinders”: 2 pistons behind each other for high power in small dimensions
  • “Equal-speed cylinders”; a piston with 2 piston-rods for driving pumps and other symmetric applications
  • “Telescopic cylinders”, up to 5 stages, for compact storage dimensions, with parallel or sequential drive
  • Hollow-piston-cylinders; for internal electrics or optics, for periscopes, etc.
  • “Press cylinders”; e.g. for 2000-ton hydraulic presses
  • “Cylinders with certified integrated hydraulic rod-locking devices”, like Sitema-units
  • “Heavy duty cylinders”: for applications in rough environment, e.g. with high shearing pressure
  • “High-Speed cylinders” with acceleration piston, up to 40 m/s
  • “Oscillating cylinders” for high frequencies and high load reversal
  • “Synchroneous cylinders”: several cylinders in parallel, hydraulically controlled
  • “Multi-halt cylinders”, with several stops, mechanically or electrically controlled
  • “Quick-Lock cylinders” for tool-change systems; a combination of pulling and turning, usually by 90 degrees
  • “Fast-clamp cylinders”, with high system-pressure for very small and fast applications like the fast-clamping of tooling
  • “Rotative drives”, turning hydraulically
  • “Rotary oil supply”, for turntables and other rotating applications
  • “Pressure multipliers”, cylinders generating higher pressure
  • “Volume dividers”, generating equal hydraulic volume
  • “Testing cylinders” for laboratories and large-applications, like the testing of airplanes and wind-mills
  • “Cylinders with integrated measuring systems and/or sensors”
  • “Cylinders with integrated mechanical locking systems”: especially with a stepless locking in any position: even when hydraulics are shut off, there is absolutely no move of the piston: e.g. for high-risk applications like in medicine
  • “Cylinders with integrated oil-connections (gun-drilled) and hydraulic manifolds”
  • “Cylinders with double piston-rods”: a super-safe solution preventing any turning of the piston-rod.
  • “Cylinders out of stainless steel”: e.g. for Medicine, Foods, Laboratory, Super-Conduction, etc.
  • “Cylinders machined out of solid blocks”: e.g. from special material
  • “Cylinders with hardened components”; hardened tube and hardened piston and rod, for maximum life-time in extreme conditions
  • “Cylinders for public customers”: with high documentation of design and production
  • “Servo-cylinders”: without any hardware-seals (only hydraulic film seals) and therefore no slip-stick-effects
  • “Cylinders out of large castings and large forgings”, for extremely large applications
  • “Reverse Engineering” for special cylinders in old applications or for expensive spare parts

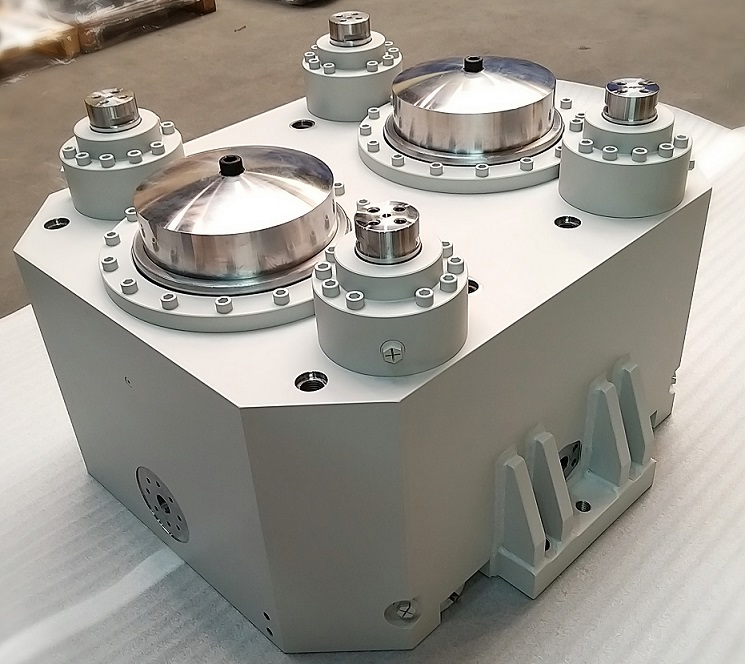

  • and some other special applications like the following 4-fold hydraulic blockStonetec
