Machines

We work with more than 140 machines from high-quality brands:

On our CNC-milling machines, CNC-boring mills and CNC-lathes we work with the latest CNC-controls from Heidenhain and Siemens.



Large machines::

  • 3 gantry-mills up to 4,9m x 14m bedsize and up to 300tons payload (Ingersoll, Waldrich Coburg, TOS)
  • 8 boring-mills with turntable and spindles 100 and 130 mm (Collet, TOS-Varnsdorf, Wotan)
  • 2 CNC boring mills turrett-type with 8 m bedsize (Mecof)
  • 3 CNC boring-mills with turntable (Union, Schiess)
  • 1 boring mill floor-type with spindle 160 (Schiess)
  • 2 gantry grinding machines up to 5m bedsize and 10 tons payload (Schiess-Aschersleben, R&K)
  • 4 rotary grinding machines up to 850mm diameter and 6m length and 4 tons (Schmaltz, TOS, Schaudt, BWF)
  • 5 CNC vertical turning machines (Hessapp, Diedesheim)
  • 5 large turning machines up to 4m chuck-size and 12m length (Hercules, Meuser, Boehringer, Gildemeister, Ravensburg)
  • 1 carrousel lathe up to 4m machining and 6m outer diameter (Schiess)
  • 1 large bending machine with 6 m rolls for up to 30 mm thickness (Schäfer)
  • 8 CNC heavy duty lathes with 34 to 50 KW spindles (Max Müller, Boehringer)

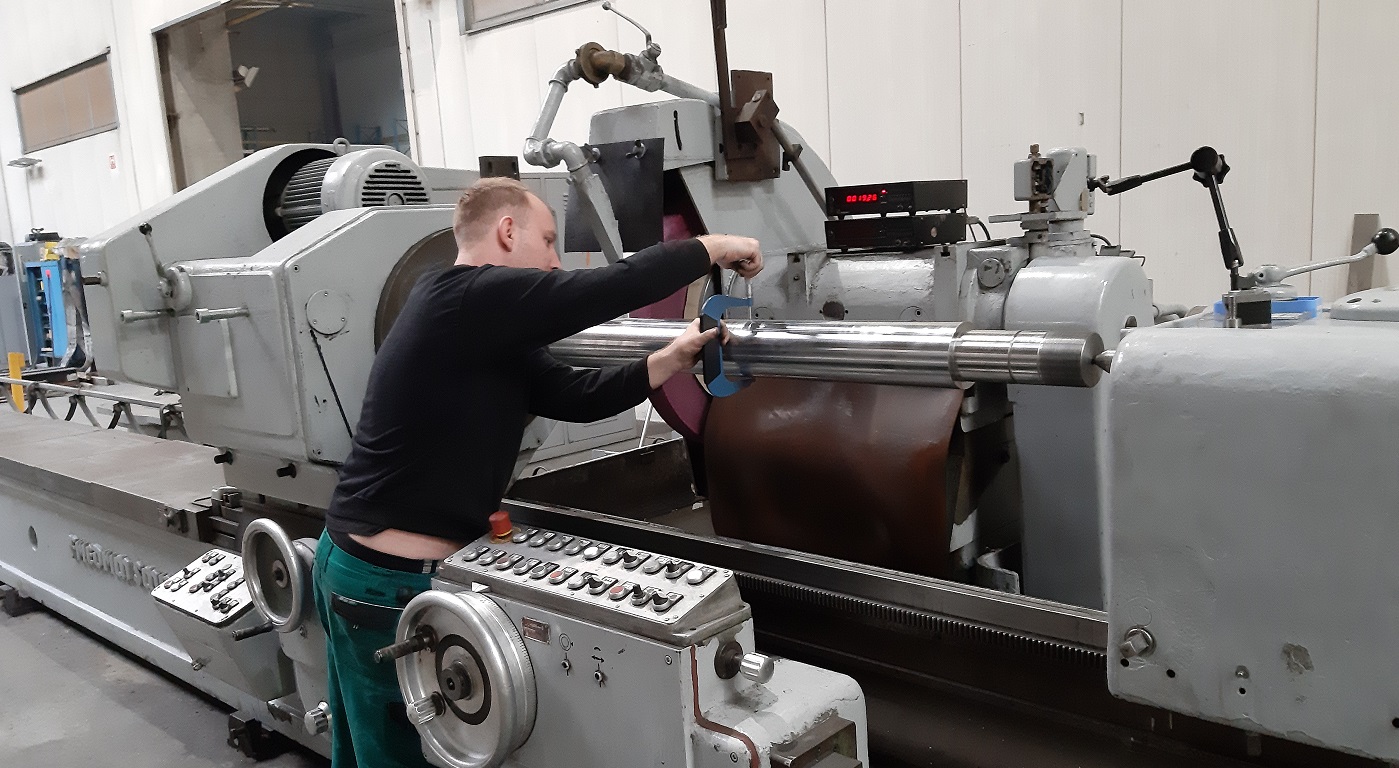

Large Grinding machine, up to D600 and L6000, specially for pistonrods

Large Grinding machine, up to D600 and L6000, specially for pistonrods

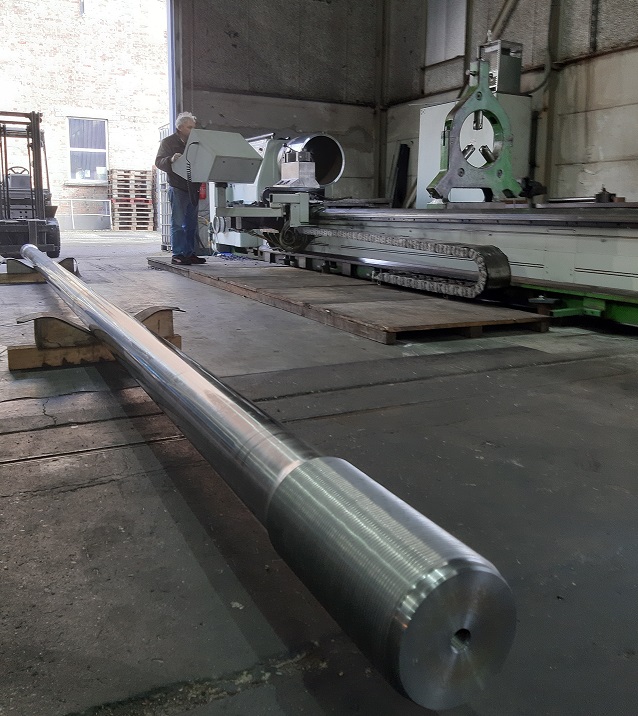

CNC Lathe Wohlenberg D 1250 x 6000 and support D 1000mm

CNC Lathe Wohlenberg D 1250 x 6000
and support D 1000mm

Small and medium machines:

  • 6 CNC machining centers (Mikron, Hermle, Deckel, Strojtos)
  • 8 classic table-milling machines (Reckermann, Maho)
  • 2 large flat grinding machines (Blohm)
  • 1 large precision grinding machine for work in mikron-dimensions (Special)
  • 2 CNC-lathes up to 2000mm (Storebro)
  • 2 heavy mills for roughing (Bohle, Heller)
  • 3 CNC drills with tables up to 3m bedsize (Alzmetall, Kolb)
  • 5 pivoting drills up to 3m radius (Kolb, Czepel)
  • 4 classic lathes; no CNC but new ! (Trens, EMCO)
  • 1 honing machine (Sunnen)
CNC-milling in the toolshop on “Mikron”, “Hermle”, “Maho”, “Strojtos” and many others

CNC-milling in the toolshop on “Mikron”, “Hermle”, “Maho”, “Strojtos” and many others



Presses, furnaces and other machinery:

  • hydraulic presses up to 200 tons and 2,5m bedsize (Janke, Reis, Läpple)
  • mechanical presses up to 300 tons (Müller)
  • straigthening press with 100 tons and assembly-presses (Reis, Müller)
  • annealing furnaces (bell-type and hearth-type) up to 6m und 1150 °C (Bouvier, Degussa)
  • 3 sand-blasting machines, 1 with 3 turbos and hanging rails, 1 for manual blasting (Rump)
  • bath-immersion paint-plant with 25m drying-furnace
  • X-ray center with windows-based software and 167K eV (Philips)
  • many MIG-, MAG-, WIG & plasma welding units up to 450 Amps and down to 1Amp (Fronius, Sauer)

and other machinery!
